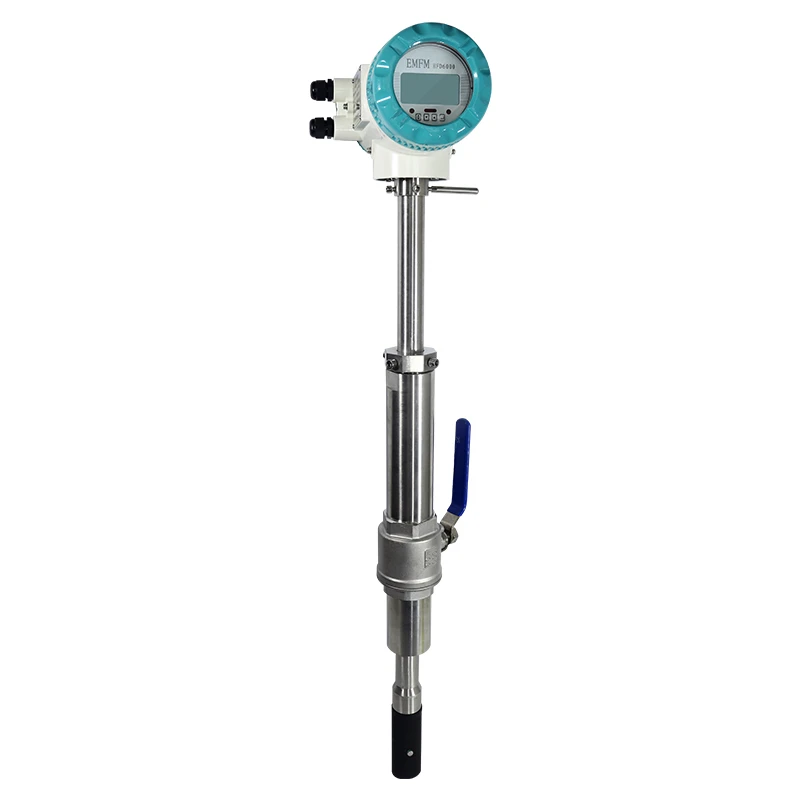

The Inserted Electromagnetic Flowmeter is a high-intelligence, high-reliability flowmeter developed using internationally advanced technologies based on Faraday's law of electromagnetic induction; due to its exceptional cost-effectiveness, it is widely employed in the field of large-diameter flow measurement.
Features and Scope of Application:

1. The measurement accuracy is not affected by variations in liquid density, viscosity, temperature, pressure, or electrical conductivity.
2. The highly reliable external mounting method eliminates the need to disassemble the measuring pipe for sensor installation or maintenance, making it particularly suitable for field applications where water supply cannot be interrupted; additionally, it allows for on-site installation by making cutouts in existing pipelines.
3. Simple structure: the electromagnetic flowmeter's measuring tube does not require a lining, ensuring high reliability.
4. Wide nominal diameter range, suitable for all pipe sizes between DN100 and DN3000.
5. Integrated grounding electrode ensures proper grounding of the instrument.
6. The sensor utilizes advanced manufacturing processes, solid-state packaging, vibration resistance, moisture resistance, and a long service life, ensuring the instrument delivers excellent measurement accuracy and stability.

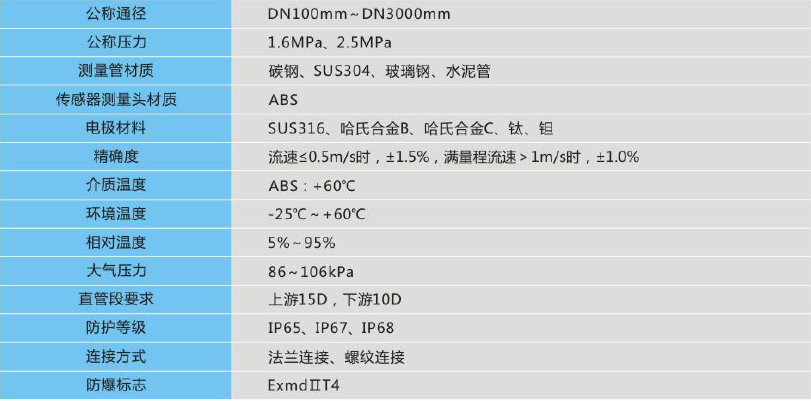

technical parameter
